Name: IRFRC20TR
Brand: Vishay Siliconix
SKU: IRFRC20TR
Availability: InStock

REF: IRFRC20TR Vishay Siliconix

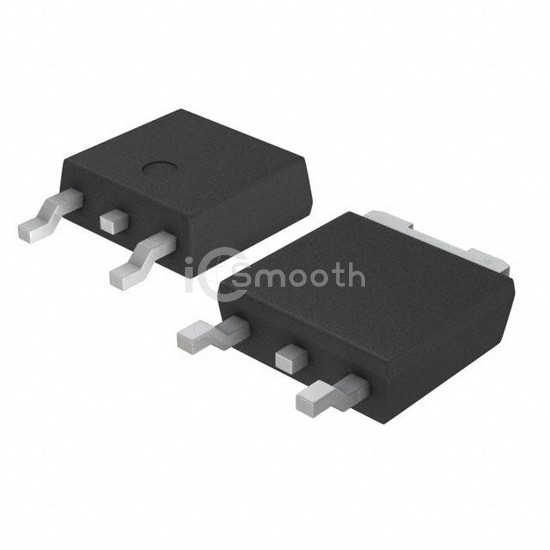

IRFRC20TR

MOSFET N-CH 600V 2A DPAK

IRFRC20TR is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 2A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,414

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.4Ohm @ 1.2A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
