Name: IRFR9210TRR
Brand: Vishay Siliconix
SKU: IRFR9210TRR
Availability: InStock

REF: IRFR9210TRR Vishay Siliconix

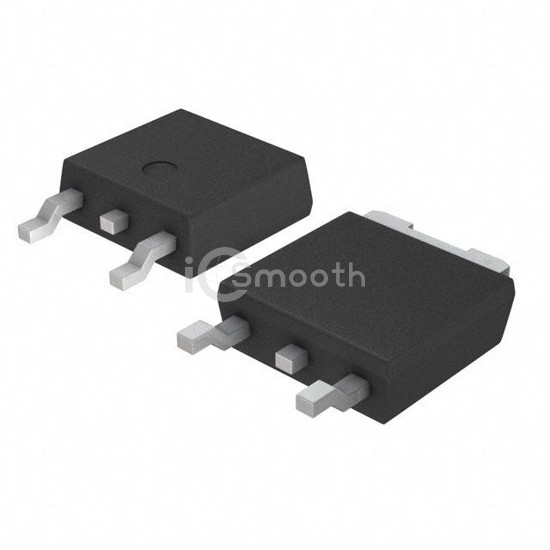

IRFR9210TRR

MOSFET P-CH 200V 1.9A DPAK

IRFR9210TRR is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 200V 1.9A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,419

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	1.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3Ohm @ 1.1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	170 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
