Name: IRFR9014TRLPBF
Brand: Vishay Siliconix
SKU: IRFR9014TRLPBF
Price: 1.60 USD
Availability: InStock

REF: IRFR9014TRLPBF Vishay Siliconix

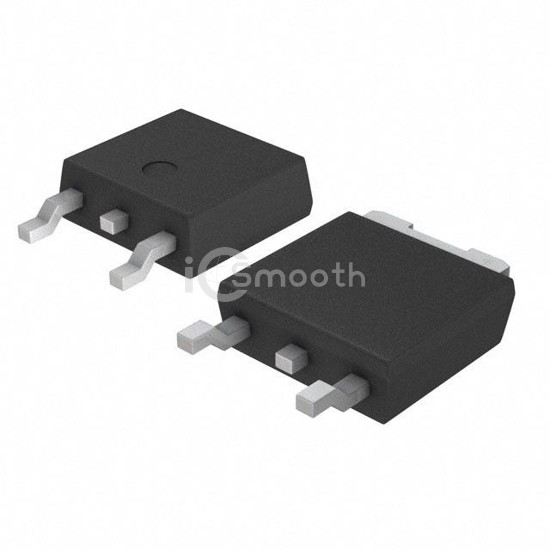

IRFR9014TRLPBF

Vishay Siliconix

MOSFET P-CH 60V 5.1A DPAK

IRFR9014TRLPBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 60V 5.1A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 3,644

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	5.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	500mOhm @ 3.1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	270 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
