Name: IRFR214TR
Brand: Vishay Siliconix
SKU: IRFR214TR
Availability: InStock

REF: IRFR214TR Vishay Siliconix

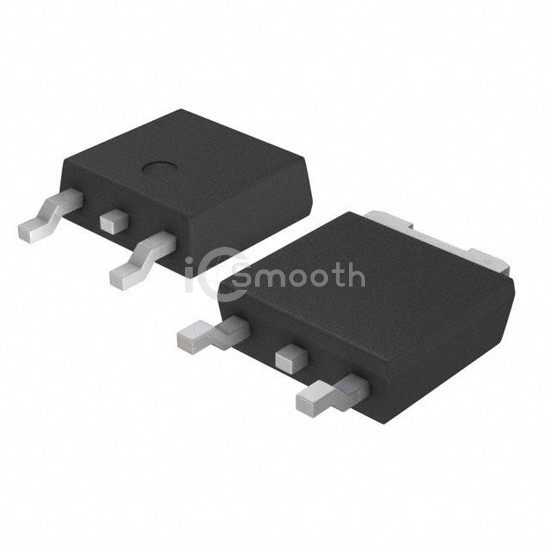

IRFR214TR

MOSFET N-CH 250V 2.2A DPAK

IRFR214TR is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 250V 2.2A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Request a Quote

In Stock: 5,803

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250 V
Current - Continuous Drain (Id) @ 25°C	2.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 1.3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	140 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
