Name: IRFPS43N50K
Brand: Vishay Siliconix
SKU: IRFPS43N50K
Availability: InStock

REF: IRFPS43N50K Vishay Siliconix

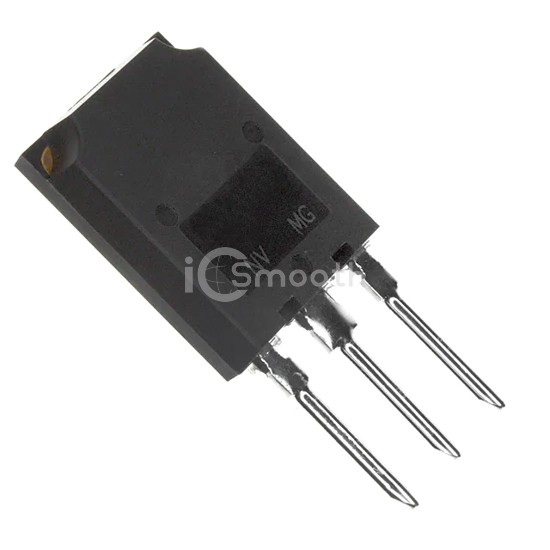

IRFPS43N50K

MOSFET N-CH 500V 47A SUPER247

IRFPS43N50K is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 500V 47A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA.

Request a Quote

In Stock: 2,704

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	90mOhm @ 28A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	350 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	8310 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	540W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
