Name: IRFPS40N60KPBF
Brand: Vishay Siliconix
SKU: IRFPS40N60KPBF
Availability: InStock

REF: IRFPS40N60KPBF Vishay Siliconix

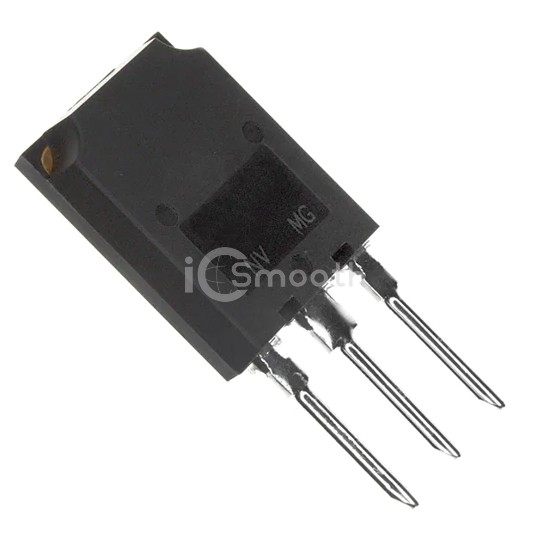

IRFPS40N60KPBF

MOSFET N-CH 600V 40A SUPER247

IRFPS40N60KPBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 40A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA.

Datasheet Request a Quote

In Stock: 2,098

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	330 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7970 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	570W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
