IRFPS29N60LPBF

In Stock: 1,496

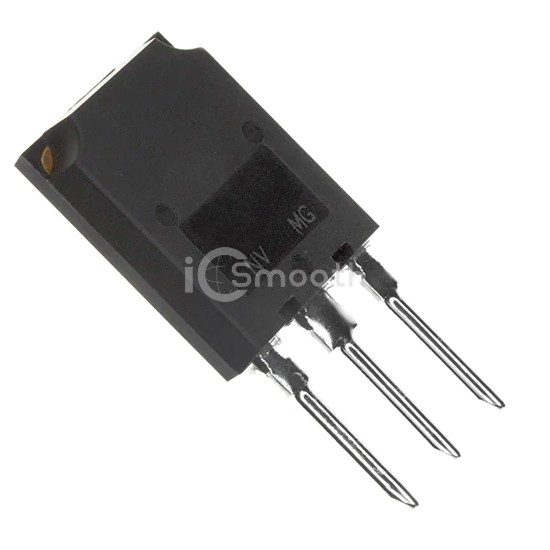

IRFPS29N60LPBF - Vishay Siliconix - Transistors - FETs, MOSFETs - Single
REF: IRFPS29N60LPBF Vishay Siliconix
IRFPS29N60LPBF

Vishay Siliconix

MOSFET N-CH 600V 29A SUPER247

IRFPS29N60LPBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 600V 29A SUPER247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-274AA.

Datasheet Request a Quote

In Stock: 1,496

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs210mOhm @ 17A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs220 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6160 pF @ 25 V
FET Feature-
Power Dissipation (Max)480W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageSUPER-247™ (TO-274AA)
Package / CaseTO-274AA
