Name: IRFBA22N50APBF
Brand: Vishay Siliconix
SKU: IRFBA22N50APBF
Availability: InStock

REF: IRFBA22N50APBF Vishay Siliconix

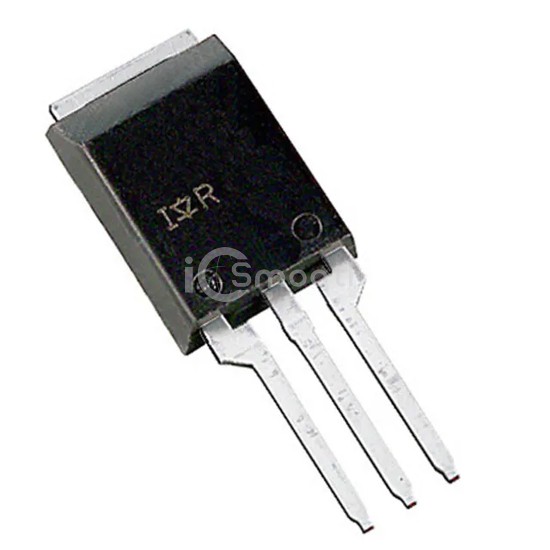

IRFBA22N50APBF

MOSFET N-CH 500V 24A SUPER-220

IRFBA22N50APBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 500V 24A SUPER-220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case Super-220™.

Datasheet Request a Quote

In Stock: 4,105

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	230mOhm @ 13.8A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	115 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3400 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	340W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-220™ (TO-273AA)
Package / Case	Super-220™
