Name: IRF9610STRRPBF
Brand: Vishay Siliconix
SKU: IRF9610STRRPBF
Price: 0.54 USD
Availability: InStock

REF: IRF9610STRRPBF Vishay Siliconix

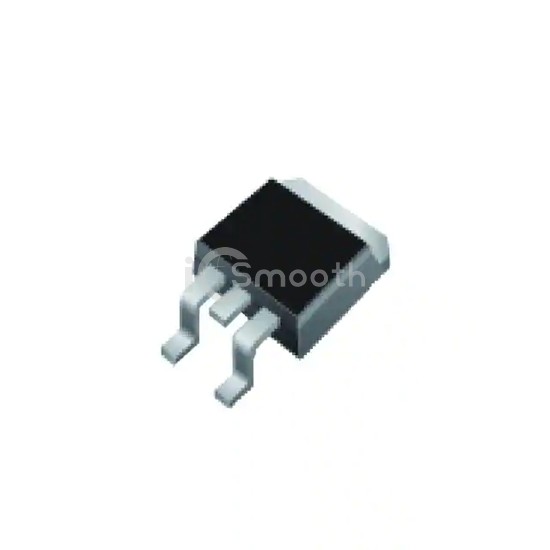

IRF9610STRRPBF

Vishay Siliconix

N-CHANNEL200V

IRF9610STRRPBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. N-CHANNEL200V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 1,892

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	1.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3Ohm @ 900mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	170 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 20W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK (TO-263)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
