Name: IRC740PBF
Brand: Vishay Siliconix
SKU: IRC740PBF
Availability: InStock

REF: IRC740PBF Vishay Siliconix

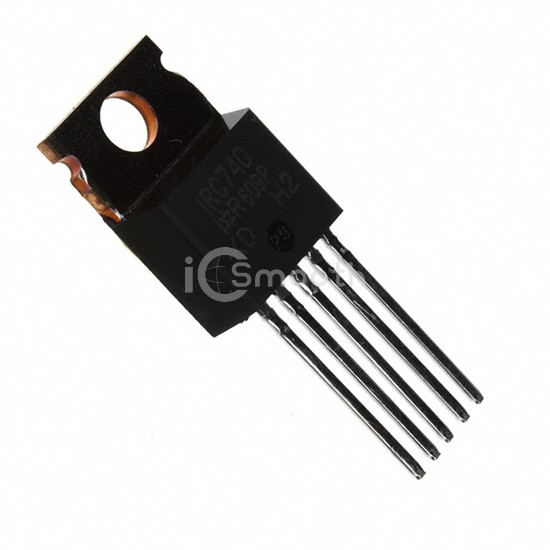

IRC740PBF

MOSFET N-CH 400V 10A TO220-5

IRC740PBF is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET N-CH 400V 10A TO220-5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-5.

Datasheet Request a Quote

In Stock: 5,607

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	400 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	66 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 25 V
FET Feature	Current Sensing
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-5
Package / Case	TO-220-5
