DG540DN-E3

In Stock: 7,958

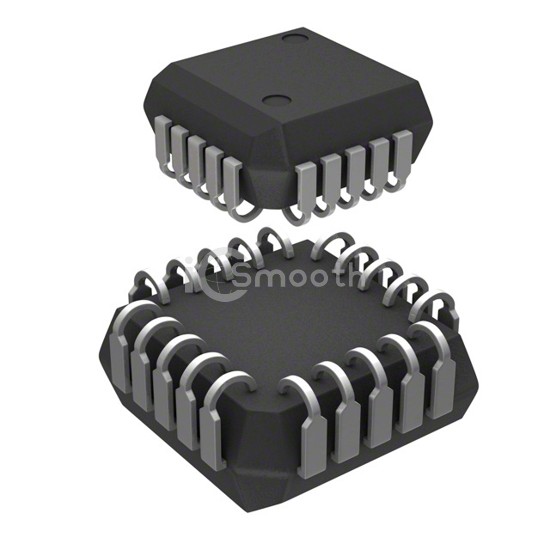

DG540DN-E3 - Vishay Siliconix - Interface - Analog Switches - Special Purpose
REF: DG540DN-E3 Vishay Siliconix
DG540DN-E3

Vishay Siliconix

IC SWITCH QUAD SPST 20PLCC

DG540DN-E3 is a Interface - Analog Switches - Special Purpose manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 20PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 7,958

Specifications

14 parameters
Product StatusObsolete
ApplicationsVideo
Multiplexer/Demultiplexer Circuit1:1
Switch CircuitSPST
Number of Channels4
On-State Resistance (Max)60Ohm
Voltage - Supply, Single (V+)3V ~ 15V
Voltage - Supply, Dual (V±)±3V ~ 15V
-3db Bandwidth500MHz
FeaturesRGB, T-Switch Configuration
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-LCC (J-Lead)
Supplier Device Package20-PLCC (9x9)
