DG534ADN-E3

In Stock: 8,890

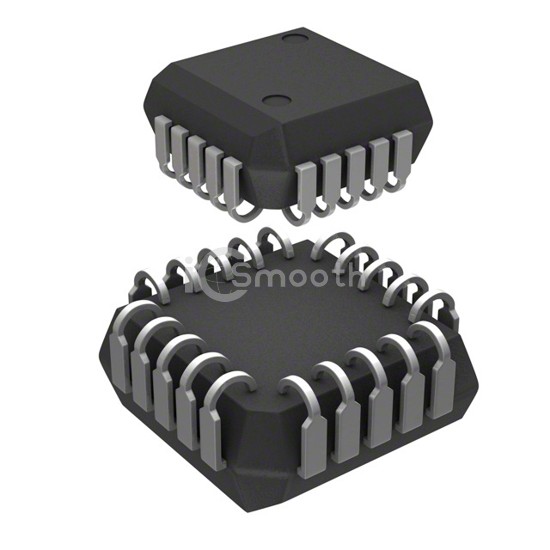

DG534ADN-E3 - Vishay Siliconix - Interface - Analog Switches - Special Purpose
REF: DG534ADN-E3 Vishay Siliconix
DG534ADN-E3

Vishay Siliconix

IC AMP/VIDEO/MUX LP 4/8CH 20PLCC

DG534ADN-E3 is a Interface - Analog Switches - Special Purpose manufactured by Vishay Siliconix. IC AMP/VIDEO/MUX LP 4/8CH 20PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 8,890

Specifications

14 parameters
Product StatusObsolete
ApplicationsUltrasound, Video
Multiplexer/Demultiplexer Circuit2:1
Switch CircuitSPDT
Number of Channels2
On-State Resistance (Max)90Ohm
Voltage - Supply, Single (V+)10V ~ 21V
Voltage - Supply, Dual (V±)-
-3db Bandwidth500MHz
FeaturesT-Switch Configuration
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-LCC (J-Lead)
Supplier Device Package20-PLCC (9x9)
