Name: 3N163-E3
Brand: Vishay Siliconix
SKU: 3N163-E3
Availability: InStock

REF: 3N163-E3 Vishay Siliconix

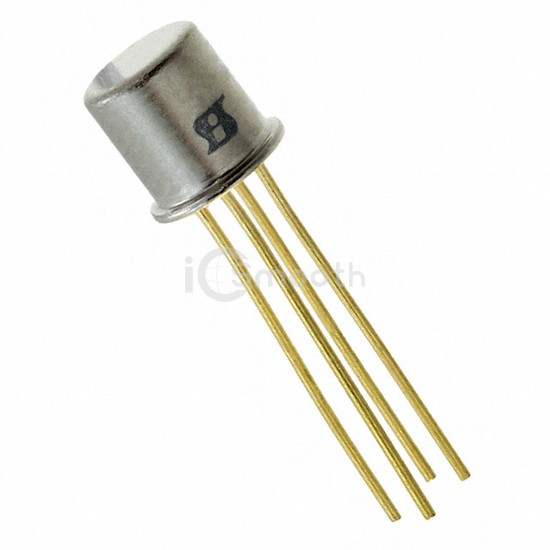

3N163-E3

MOSFET P-CH 40V 50MA TO72

3N163-E3 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay Siliconix. MOSFET P-CH 40V 50MA TO72. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 9,146

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	250Ohm @ 100µA, 20V
Vgs(th) (Max) @ Id	5V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3.5 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	375mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-72
Package / Case	TO-206AF, TO-72-4 Metal Can
