Name: VOT8123AG-V
Brand: Vishay Semiconductor Opto Division
SKU: VOT8123AG-V
Price: 0.94 USD
Availability: InStock

REF: VOT8123AG-V Vishay Semiconductor Opto Division

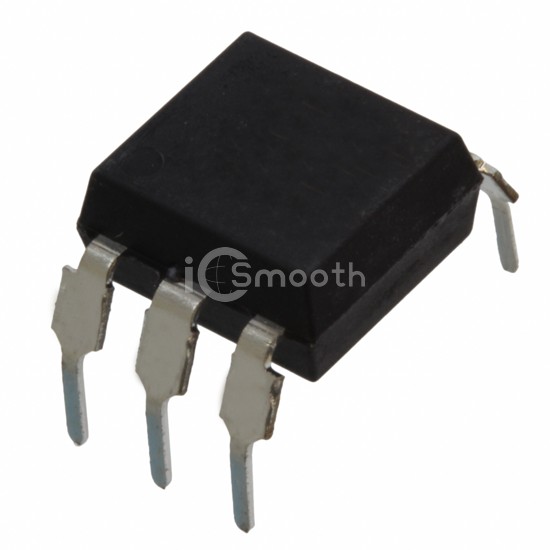

VOT8123AG-V

Vishay Semiconductor Opto Division

OPTOCPLR PHOTOTRIAC 800V DIP6 GW

VOT8123AG-V is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOCPLR PHOTOTRIAC 800V DIP6 GW. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 41

Tiered Pricing USD

1+ $0.9400 —

50+ $0.5240 -44%

100+ $0.4811 -49%

500+ $0.4044 -57%

1,000+ $0.3792 -60%

2,000+ $0.3579 -62%

5,000+ $0.3346 -64%

10,000+ $0.3201 -66%

25,000+ $0.3042 -68% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	800 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	400µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.400", 10.16mm)
Supplier Device Package	6-DIP
Approval Agency	CQC, cUL, UL, VDE
