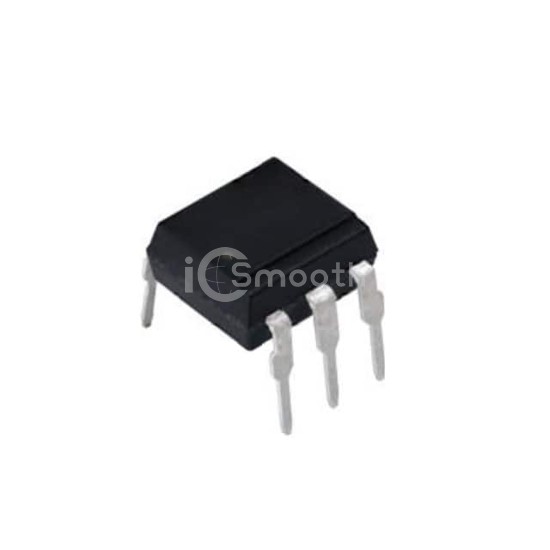

Name: VOT8026AD-V
Brand: Vishay Semiconductor Opto Division
SKU: VOT8026AD-V
Price: 1.25 USD
Availability: InStock

REF: VOT8026AD-V Vishay Semiconductor Opto Division

VOT8026AD-V

Vishay Semiconductor Opto Division

OPTOCOUPLER PHOTOTRIAC 800V DIP6

VOT8026AD-V is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOCOUPLER PHOTOTRIAC 800V DIP6. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD

1+ $1.2500 —

50+ $0.7132 -43%

100+ $0.6577 -47%

500+ $0.5584 -55%

1,000+ $0.5259 -58%

2,000+ $0.4984 -60%

5,000+ $0.4683 -63%

10,000+ $0.4496 -64% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	5300Vrms
Voltage - Off State	800 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	400µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CQC, cUL, UL, VDE
