Name: VOT8024AG
Brand: Vishay Semiconductor Opto Division
SKU: VOT8024AG
Price: 1.25 USD
Availability: InStock

REF: VOT8024AG Vishay Semiconductor Opto Division

VOT8024AG

Vishay Semiconductor Opto Division

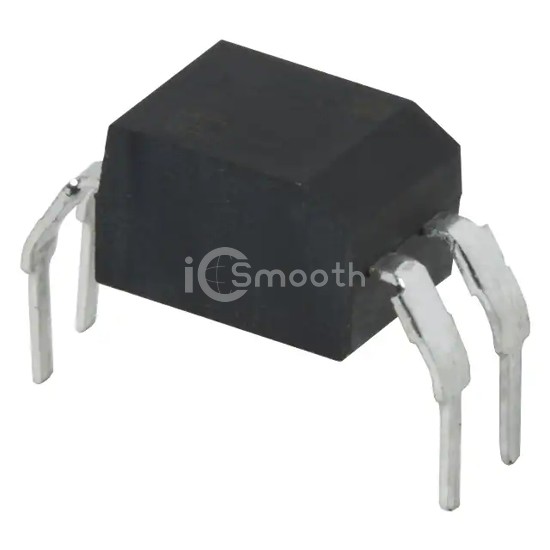

PHOTOTRIAC 800V ZC DIP4 400MIL

VOT8024AG is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. PHOTOTRIAC 800V ZC DIP4 400MIL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 6,685

Tiered Pricing USD

1+ $1.2500 —

10+ $0.8810 -30%

100+ $0.6577 -47%

500+ $0.5584 -55%

1,000+ $0.5259 -58%

2,000+ $0.4984 -60%

5,000+ $0.4683 -63%

10,000+ $0.4496 -64% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	5300Vrms
Voltage - Off State	800 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	400µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
Approval Agency	CQC, cUL, UL, VDE
