Name: VOM160PT
Brand: Vishay Semiconductor Opto Division
SKU: VOM160PT
Price: 0.95 USD
Availability: InStock

REF: VOM160PT Vishay Semiconductor Opto Division

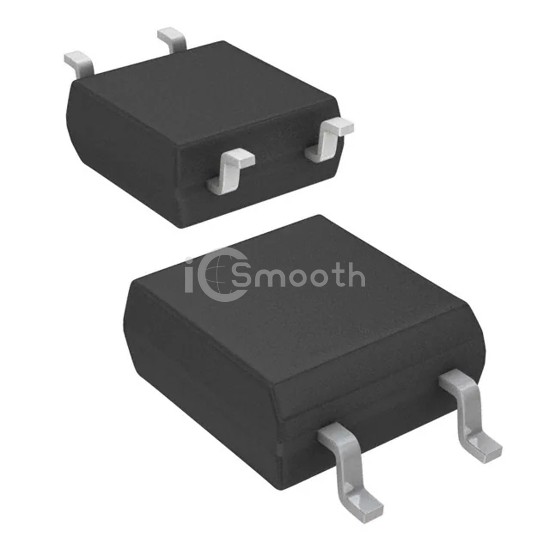

VOM160PT

Vishay Semiconductor Opto Division

OPTOISOLATOR 3.75KV TRIAC 4SOP

VOM160PT is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 3.75KV TRIAC 4SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,954

Tiered Pricing USD

1+ $0.9500 —

10+ $0.6650 -30%

100+ $0.4899 -48%

500+ $0.4120 -57%

1,000+ $0.3865 -59% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	3750Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	500V/µs
Current - LED Trigger (Ift) (Max)	7mA
Current - On State (It (RMS)) (Max)	70 mA

Current - Hold (Ih)	300µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP (2.54mm)
Approval Agency	CQC, cUR, UR
