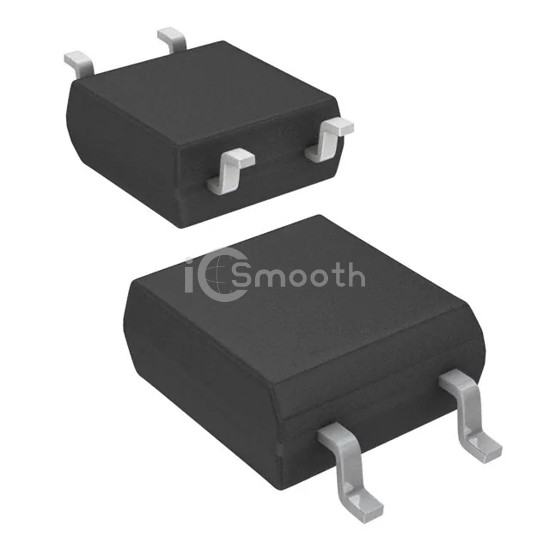

Name: VOM160N-X001T
Brand: Vishay Semiconductor Opto Division
SKU: VOM160N-X001T
Price: 0.36 USD
Availability: InStock

REF: VOM160N-X001T Vishay Semiconductor Opto Division

VOM160N-X001T

Vishay Semiconductor Opto Division

OPTOISOLATOR 3.75KV TRIAC 4SOP

VOM160N-X001T is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 3.75KV TRIAC 4SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,393

Tiered Pricing USD

2,000+ $0.3558 —

4,000+ $0.3378 -5%

6,000+ $0.3285 -8%

10,000+ $0.3181 -11%

14,000+ $0.3119 -12%

20,000+ $0.3059 -14% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	3750Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	500V/µs
Current - LED Trigger (Ift) (Max)	5mA
Current - On State (It (RMS)) (Max)	70 mA

Current - Hold (Ih)	300µA (Typ)
Turn On Time	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP
Approval Agency	CQC, cUR, UR, VDE
