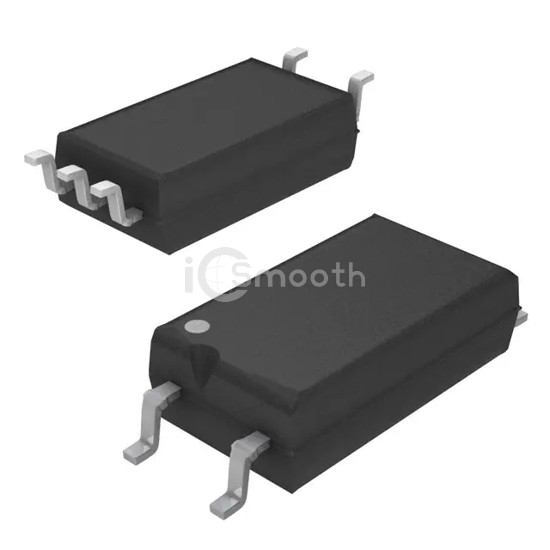

VOL3120-X001T

In Stock: 8,622
VOL3120-X001T - Vishay Semiconductor Opto Division - Isolators - Gate Drivers
REF: VOL3120-X001T Vishay Semiconductor Opto Division
VOL3120-X001T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 1CH GATE DVR 5LSOP

VOL3120-X001T is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 1CH GATE DVR 5LSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.36V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 8,622

Specifications

18 parameters
Product StatusLast Time Buy
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5300Vrms
Common Mode Transient Immunity (Min)48kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)300ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.36V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 32V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package5-LSOP
Approval AgencyCQC, cUR, UR, VDE
