Name: VOD3120AB-VT2
Brand: Vishay Semiconductor Opto Division
SKU: VOD3120AB-VT2
Price: 1.03 USD
Availability: InStock

REF: VOD3120AB-VT2 Vishay Semiconductor Opto Division

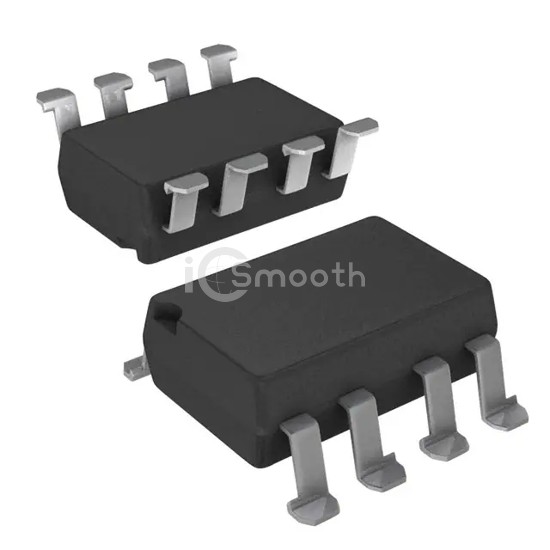

VOD3120AB-VT2

Vishay Semiconductor Opto Division

OPTOISO IGBT MOSFET DRIVER 2.5A

VOD3120AB-VT2 is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO IGBT MOSFET DRIVER 2.5A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 964

Tiered Pricing USD

1,000+ $1.0308 —

2,000+ $0.9846 -4%

3,000+ $0.9609 -7%

5,000+ $0.9342 -9%

7,000+ $0.9184 -11%

10,000+ $0.9029 -12% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	35ns, 35ns
Current - Output High, Low	2.5A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.37V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Approval Agency	CQC, cUL, UL, VDE
