Name: VOD3120AB-T2
Brand: Vishay Semiconductor Opto Division
SKU: VOD3120AB-T2
Price: 2.24 USD
Availability: InStock

REF: VOD3120AB-T2 Vishay Semiconductor Opto Division

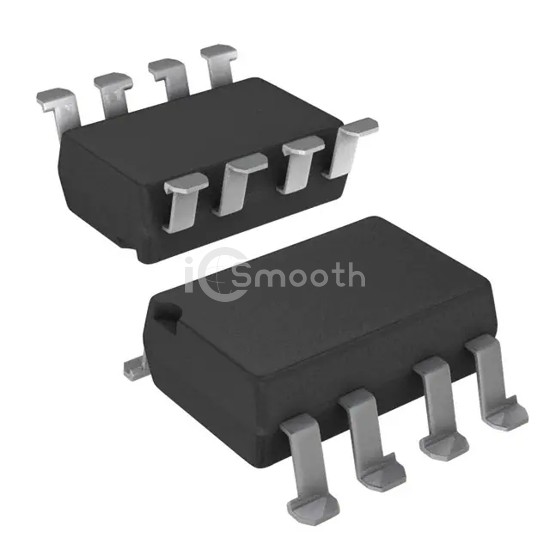

VOD3120AB-T2

Vishay Semiconductor Opto Division

OPTOISO IGBT MOSFET DRIVER 2.5A

VOD3120AB-T2 is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO IGBT MOSFET DRIVER 2.5A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.37V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 702

Tiered Pricing USD

1+ $2.2400 —

10+ $1.6090 -28%

100+ $1.2341 -45%

500+ $1.0688 -52% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	70ns
Rise / Fall Time (Typ)	35ns, 35ns
Current - Output High, Low	2.5A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.37V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
Approval Agency	CQC, cUL, UL, VDE
