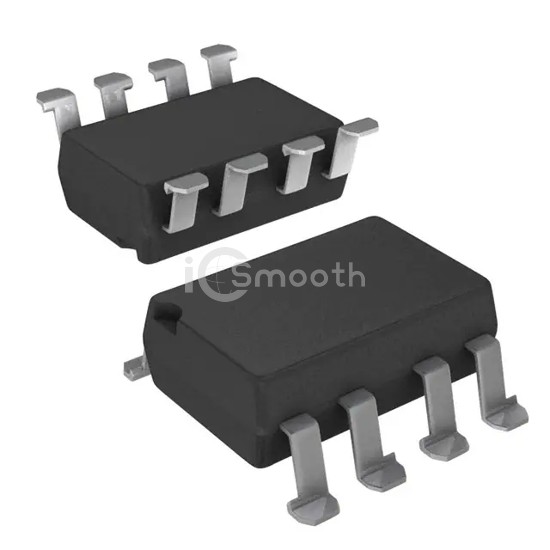

VO3120-X007T

In Stock: 16,000
VO3120-X007T - Vishay Semiconductor Opto Division - Isolators - Gate Drivers
REF: VO3120-X007T Vishay Semiconductor Opto Division
VO3120-X007T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 1CH GATE DRVR 8SMD

VO3120-X007T is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 1CH GATE DRVR 8SMD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.6V (Max), package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 16,000

Tiered Pricing USD
1+ $1.8000 —
10+ $1.2840 -29%
100+ $0.9741 -46%
500+ $0.8375 -53% BEST

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5300Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)200ns
Rise / Fall Time (Typ)100ns, 100ns
Current - Output High, Low2.5A, 2.5A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.6V (Max)
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 32V
Operating Temperature-40°C ~ 110°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
Approval AgencycUR, UR
