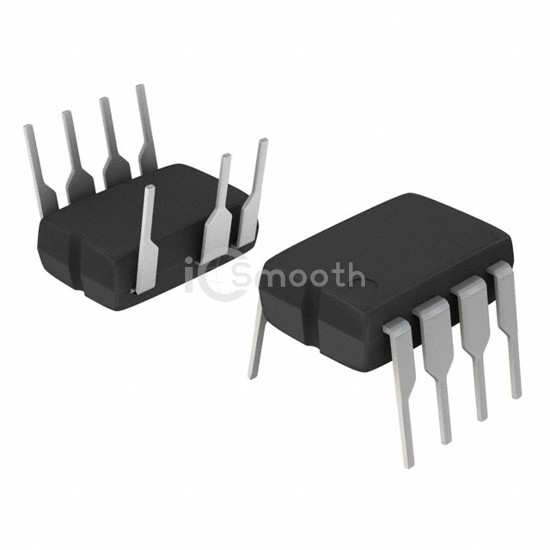

VO3120-X001

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 1CH GATE DRVR 8DIP

VO3120-X001 is a Isolators - Gate Drivers manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 1CH GATE DRVR 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.6V (Max), package / case 8-DIP (0.300", 7.62mm), 7 Leads.

Datasheet Request a Quote

In Stock: 796

Tiered Pricing USD

1+ $2.2400 —

50+ $1.3304 -41%

100+ $1.2374 -45%

500+ $1.0718 -52%

1,000+ $1.0178 -55%

2,000+ $0.9720 -57%

5,000+ $0.9221 -59%

10,000+ $0.8911 -60% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	400ns, 400ns
Pulse Width Distortion (Max)	200ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2.5A, 2.5A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.6V (Max)
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 32V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package	8-DIP
Approval Agency	cUR, UR, VDE
