Name: TCLT1116
Brand: Vishay Semiconductor Opto Division
SKU: TCLT1116
Price: 0.30 USD
Availability: InStock

REF: TCLT1116 Vishay Semiconductor Opto Division

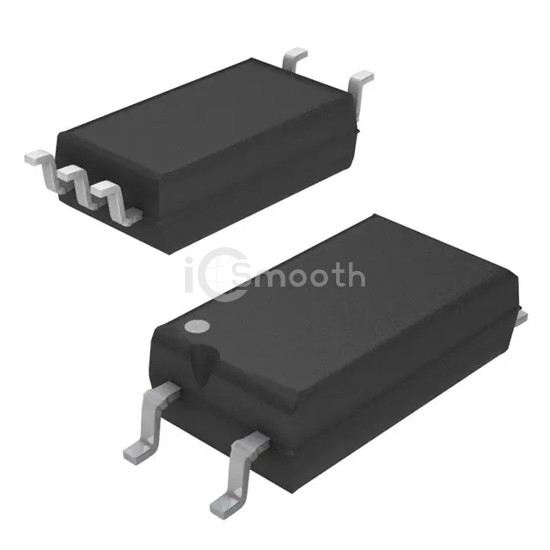

TCLT1116

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE SOP-6L5

TCLT1116 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE SOP-6L5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 3,199

Tiered Pricing USD

3,000+ $0.2975 —

6,000+ $0.2829 -5%

9,000+ $0.2754 -7%

15,000+ $0.2670 -10%

21,000+ $0.2620 -12%

30,000+ $0.2571 -14% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	6µs, 5µs
Rise / Fall Time (Typ)	3µs, 4.7µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package	6-SOP, 5 Pin
