Name: TCLT1108
Brand: Vishay Semiconductor Opto Division
SKU: TCLT1108
Price: 0.27 USD
Availability: InStock

REF: TCLT1108 Vishay Semiconductor Opto Division

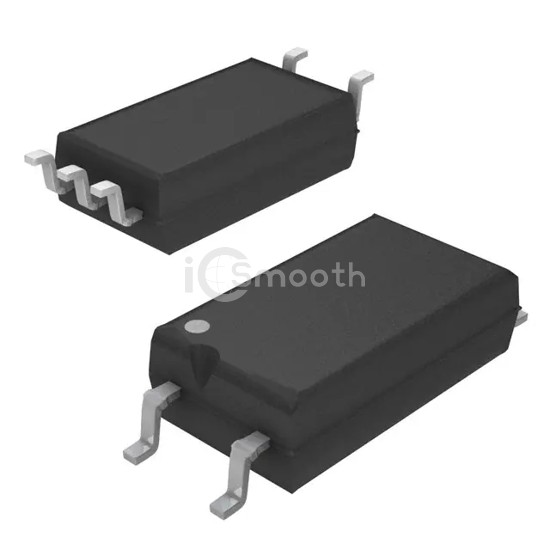

TCLT1108

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6SOP

TCLT1108 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.295", 7.50mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 9,618

Tiered Pricing USD

3,000+ $0.2675 —

6,000+ $0.2541 -5%

9,000+ $0.2472 -8%

15,000+ $0.2394 -11%

21,000+ $0.2348 -12%

30,000+ $0.2303 -14% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	130% @ 5mA
Current Transfer Ratio (Max)	260% @ 5mA
Turn On / Turn Off Time (Typ)	6µs, 5µs
Rise / Fall Time (Typ)	3µs, 4.7µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package	6-SOP, 5 Pin
