Name: TCET4600G
Brand: Vishay Semiconductor Opto Division
SKU: TCET4600G
Price: 0.94 USD
Availability: InStock

REF: TCET4600G Vishay Semiconductor Opto Division

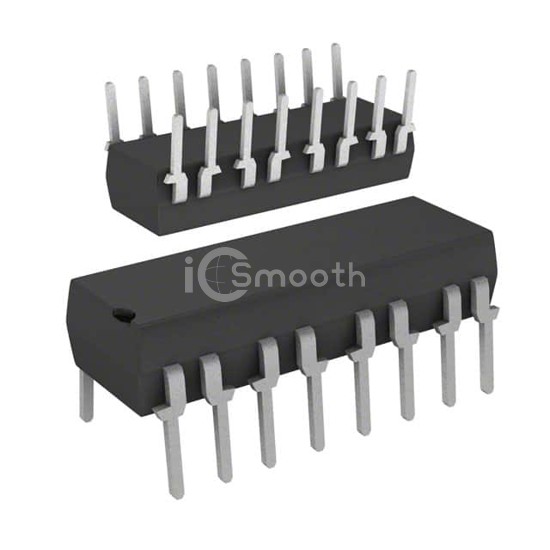

TCET4600G

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 4CH TRANS 16DIP

TCET4600G is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 4CH TRANS 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 16-DIP (0.400", 10.16mm).

Request a Quote

In Stock: 8,048

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	6µs, 5µs
Rise / Fall Time (Typ)	3µs, 4.7µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.400", 10.16mm)
Supplier Device Package	16-DIP
