Name: TCED1100
Brand: Vishay Semiconductor Opto Division
SKU: TCED1100
Price: 0.94 USD
Availability: InStock

REF: TCED1100 Vishay Semiconductor Opto Division

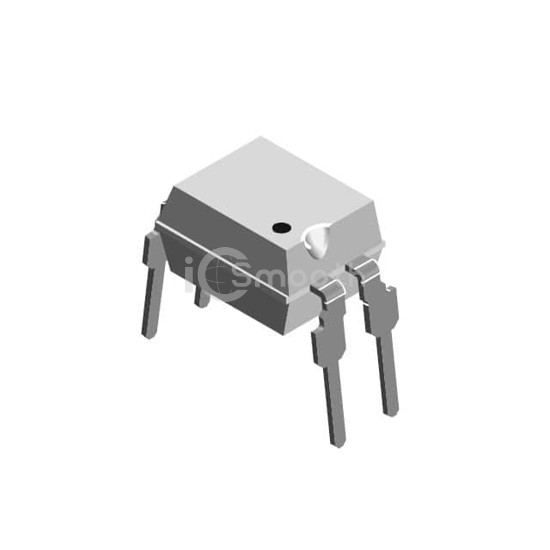

TCED1100

Vishay Semiconductor Opto Division

OPTOISOLATOR 5KV TRANS 4DIP

TCED1100 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,793

Tiered Pricing USD

1+ $0.9400 —

10+ $0.5720 -39%

100+ $0.3844 -59%

500+ $0.3109 -67%

1,000+ $0.2883 -69%

2,000+ $0.2699 -71% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	300µs, 250µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	35V
Current - Output / Channel	80mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	1V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
