Name: TCDT1124
Brand: Vishay Semiconductor Opto Division
SKU: TCDT1124
Price: 0.67 USD
Availability: InStock

REF: TCDT1124 Vishay Semiconductor Opto Division

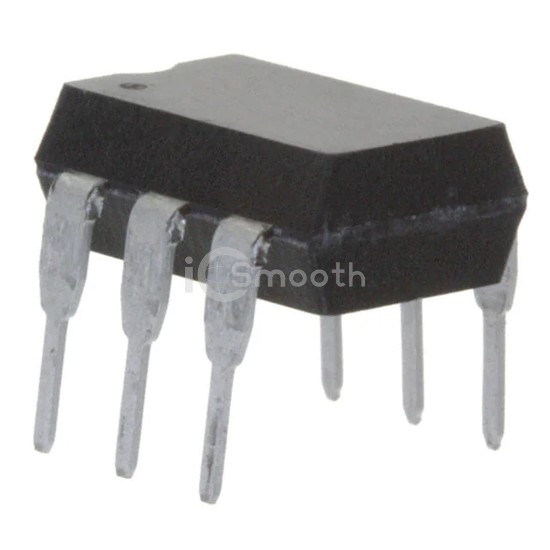

TCDT1124

Vishay Semiconductor Opto Division

OPTOISOLATOR 5KV TRANS 6DIP

TCDT1124 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5KV TRANS 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,946

Tiered Pricing USD

1+ $0.6700 —

50+ $0.3710 -45%

100+ $0.3391 -49%

500+ $0.2818 -58%

1,000+ $0.2630 -61%

2,000+ $0.2470 -63%

5,000+ $0.2296 -66%

10,000+ $0.2187 -67%

25,000+ $0.2068 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	160% @ 10mA
Current Transfer Ratio (Max)	320% @ 10mA
Turn On / Turn Off Time (Typ)	4µs, 4.7µs
Rise / Fall Time (Typ)	4µs, 4.7µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
