Name: SFH690D-X001T
Brand: Vishay Semiconductor Opto Division
SKU: SFH690D-X001T
Price: 0.32 USD
Availability: InStock

REF: SFH690D-X001T Vishay Semiconductor Opto Division

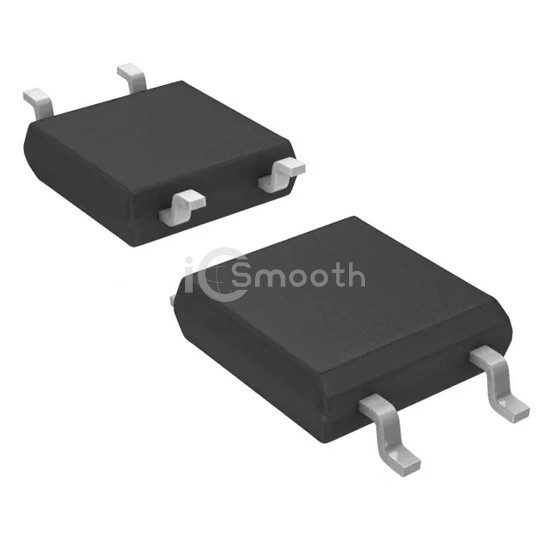

SFH690D-X001T

Vishay Semiconductor Opto Division

OPTOISOLATOR 3.75KV TRANS 4SOP

SFH690D-X001T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 3.75KV TRANS 4SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,295

Tiered Pricing USD

2,000+ $0.3225 —

4,000+ $0.3058 -5%

6,000+ $0.2972 -8%

10,000+ $0.2876 -11%

14,000+ $0.2818 -13%

20,000+ $0.2762 -14% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	5µs, 3µs
Rise / Fall Time (Typ)	3µs, 4µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP (2.54mm)
