Name: SFH6345
Brand: Vishay Semiconductor Opto Division
SKU: SFH6345
Price: 2.02 USD
Availability: InStock

REF: SFH6345 Vishay Semiconductor Opto Division

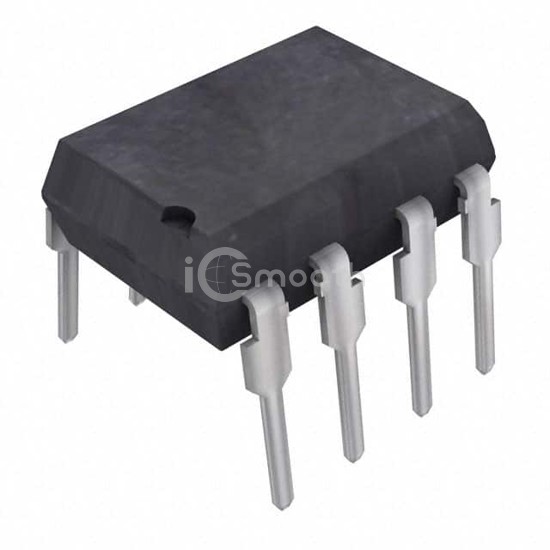

SFH6345

Vishay Semiconductor Opto Division

OPTOISOLATOR 5.3KV TRANS 8-DIP

SFH6345 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRANS 8-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.33V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,058

Tiered Pricing USD

1+ $2.0200 —

50+ $1.1900 -41%

100+ $1.1050 -45%

500+ $0.9537 -53%

1,000+ $0.9044 -55%

2,000+ $0.8626 -57%

5,000+ $0.8170 -60%

10,000+ $0.7886 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	19% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	300ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	25V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.33V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
