Name: SFH620A-3X016
Brand: Vishay Semiconductor Opto Division
SKU: SFH620A-3X016
Price: 1.04 USD
Availability: InStock

REF: SFH620A-3X016 Vishay Semiconductor Opto Division

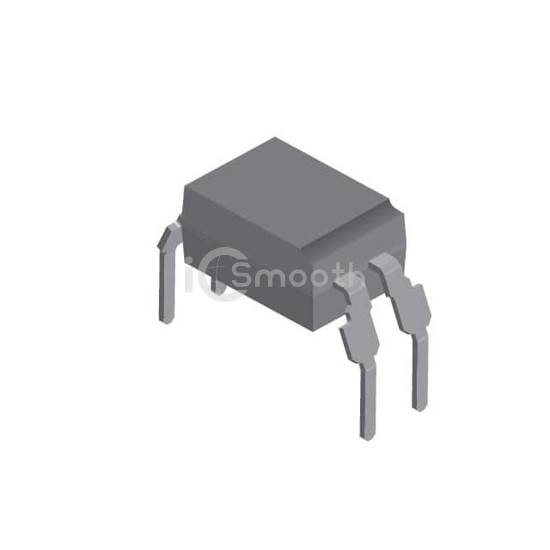

SFH620A-3X016

Vishay Semiconductor Opto Division

OPTOISOLATOR 5.3KV TRANS 4DIP

SFH620A-3X016 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 4-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD

1+ $1.0400 —

10+ $0.7310 -30%

100+ $0.5410 -48%

500+ $0.4564 -56%

1,000+ $0.4288 -59%

2,000+ $0.4053 -61%

5,000+ $0.3796 -63%

10,000+ $0.3636 -65%

25,000+ $0.3462 -67% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	320% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.400", 10.16mm)
Supplier Device Package	4-DIP
