Name: SFH618A-3X001
Brand: Vishay Semiconductor Opto Division
SKU: SFH618A-3X001
Price: 1.11 USD
Availability: InStock

REF: SFH618A-3X001 Vishay Semiconductor Opto Division

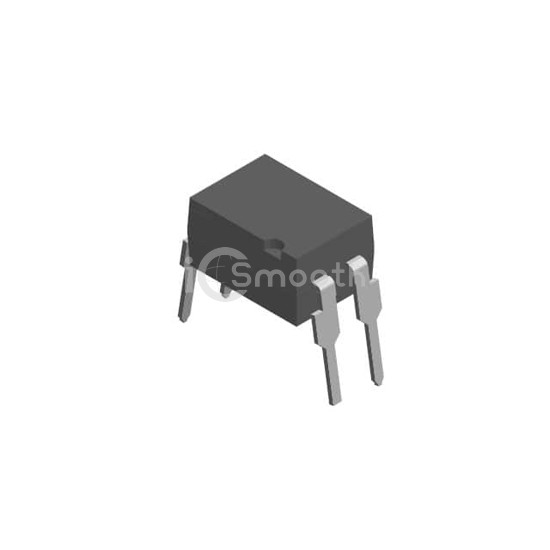

SFH618A-3X001

Vishay Semiconductor Opto Division

OPTOISOLATOR 5.3KV TRANS 4DIP

SFH618A-3X001 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRANS 4DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5,210

Tiered Pricing USD

1+ $1.1100 —

10+ $0.7820 -30%

100+ $0.5803 -48%

500+ $0.4907 -56%

1,000+ $0.4614 -58%

2,000+ $0.4365 -61%

5,000+ $0.4093 -63%

10,000+ $0.3924 -65%

25,000+ $0.3740 -66% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	200% @ 1mA
Turn On / Turn Off Time (Typ)	6µs, 5.5µs
Rise / Fall Time (Typ)	3.5µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	55V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
