Name: SFH601-3X009
Brand: Vishay Semiconductor Opto Division
SKU: SFH601-3X009
Price: 1.41 USD
Availability: InStock

REF: SFH601-3X009 Vishay Semiconductor Opto Division

SFH601-3X009

Vishay Semiconductor Opto Division

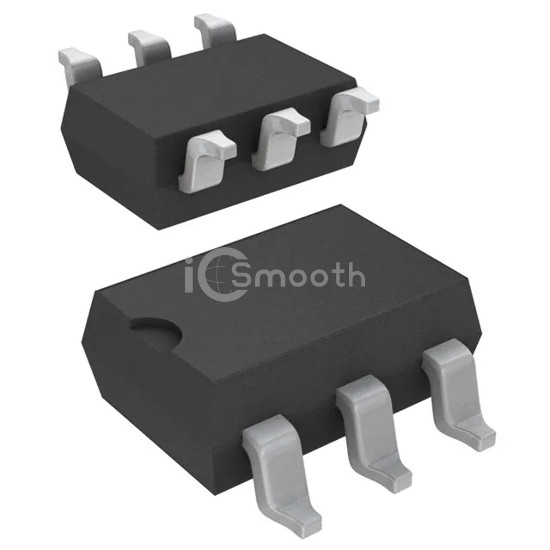

OPTOISO 5.3KV TRANS W/BASE 6SMD

SFH601-3X009 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,829

Tiered Pricing USD

1+ $1.4100 —

50+ $0.8102 -43%

100+ $0.7483 -47%

500+ $0.6380 -55%

1,000+ $0.6019 -57%

2,000+ $0.5713 -59%

5,000+ $0.5380 -62%

10,000+ $0.5172 -63% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	100V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
