SFH601-3X007T

In Stock: 379

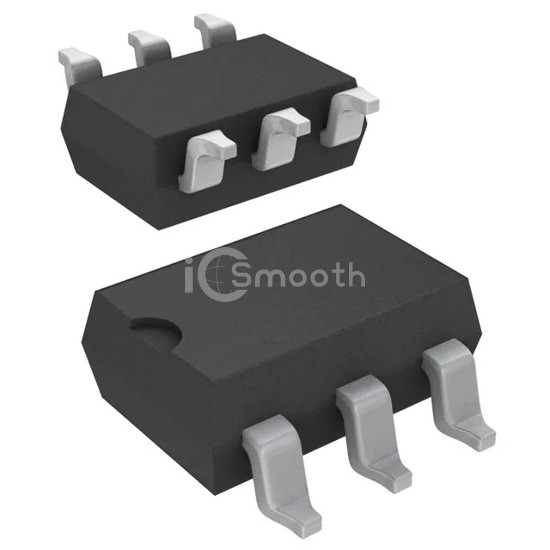

SFH601-3X007T - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output
REF: SFH601-3X007T Vishay Semiconductor Opto Division
SFH601-3X007T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6SMD

SFH601-3X007T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 379

Tiered Pricing USD
1+ $1.5700 —
10+ $1.1130 -29%
100+ $0.8392 -47%
500+ $0.7181 -54% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)200% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 2.3µs
Rise / Fall Time (Typ)2µs, 2µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)100V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
