Name: SFH601-1
Brand: Vishay Semiconductor Opto Division
SKU: SFH601-1
Price: 1.44 USD
Availability: InStock

REF: SFH601-1 Vishay Semiconductor Opto Division

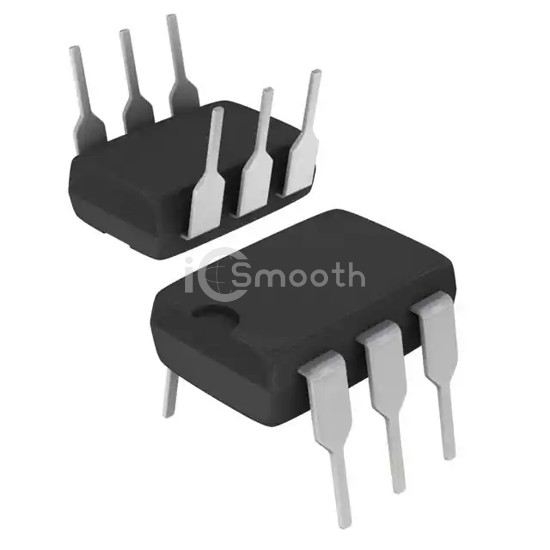

SFH601-1

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6DIP

SFH601-1 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,685

Tiered Pricing USD

1+ $1.4400 —

10+ $1.0200 -29%

100+ $0.7662 -47%

500+ $0.6537 -55%

1,000+ $0.6170 -57%

2,000+ $0.5858 -59%

6,000+ $0.5459 -62%

10,000+ $0.5306 -63% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	40% @ 10mA
Current Transfer Ratio (Max)	80% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	100V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
