Name: MOC8102
Brand: Vishay Semiconductor Opto Division
SKU: MOC8102
Price: 1.38 USD
Availability: InStock

REF: MOC8102 Vishay Semiconductor Opto Division

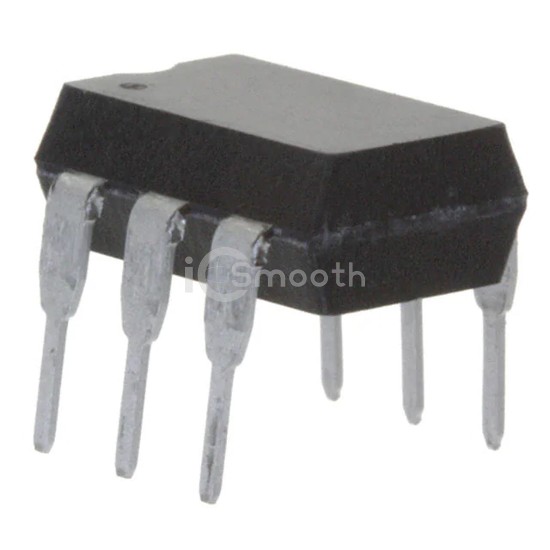

MOC8102

Vishay Semiconductor Opto Division

OPTOISOLATOR 5.3KV TRANS 6-DIP

MOC8102 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 5.3KV TRANS 6-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 541

Tiered Pricing USD

1+ $1.3800 —

50+ $0.7948 -42%

100+ $0.7339 -47% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	73% @ 10mA
Current Transfer Ratio (Max)	117% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
