Name: ILQ620GB-X009
Brand: Vishay Semiconductor Opto Division
SKU: ILQ620GB-X009
Price: 4.22 USD
Availability: InStock

REF: ILQ620GB-X009 Vishay Semiconductor Opto Division

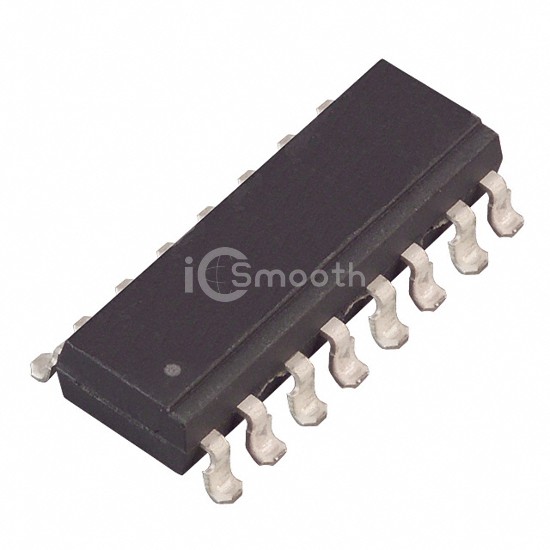

ILQ620GB-X009

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 4CH TRANS 16SMD

ILQ620GB-X009 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 4CH TRANS 16SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 16-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,027

Tiered Pricing USD

1+ $4.2200 —

25+ $2.8124 -33%

100+ $2.4625 -42%

500+ $2.1770 -48% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	20µs, 2µs
Input Type	AC, DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SMD, Gull Wing
Supplier Device Package	16-SMD
