Name: ILQ2-X017
Brand: Vishay Semiconductor Opto Division
SKU: ILQ2-X017
Availability: InStock

REF: ILQ2-X017 Vishay Semiconductor Opto Division

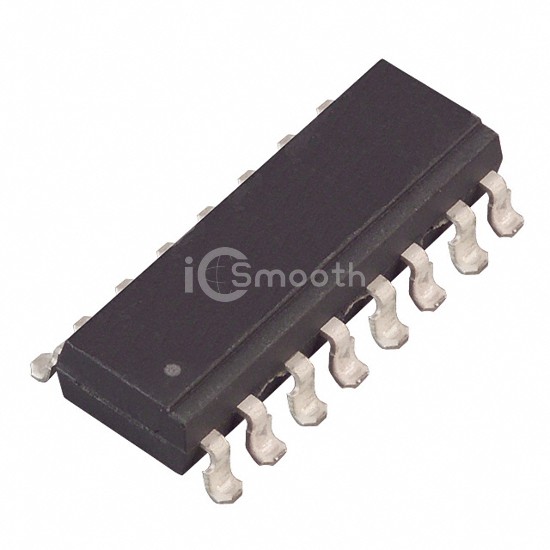

ILQ2-X017

OPTOISO 5.3KV 4CH TRANS 16SMD

ILQ2-X017 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 4CH TRANS 16SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 16-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,055

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	4
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	500% @ 10mA
Turn On / Turn Off Time (Typ)	1.2µs, 2.3µs
Rise / Fall Time (Typ)	2.6µs, 2.2µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	16-SMD, Gull Wing
Supplier Device Package	16-SMD
