Name: ILQ2-X016
Brand: Vishay Semiconductor Opto Division
SKU: ILQ2-X016
Price: 2.78 USD
Availability: InStock

REF: ILQ2-X016 Vishay Semiconductor Opto Division

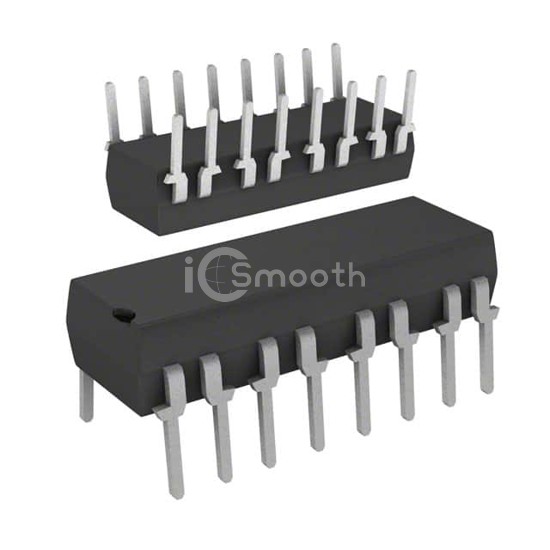

ILQ2-X016

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 4CH TRANS 16DIP

ILQ2-X016 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 4CH TRANS 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 16-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 6,896

Tiered Pricing USD

1+ $2.7800 —

10+ $2.0190 -27%

100+ $1.5650 -44%

500+ $1.3652 -51% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	4
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	500% @ 10mA
Turn On / Turn Off Time (Typ)	1.2µs, 2.3µs
Rise / Fall Time (Typ)	2.6µs, 2.2µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	16-DIP (0.400", 10.16mm)
Supplier Device Package	16-DIP
