ILD755-2X007T

In Stock: 717

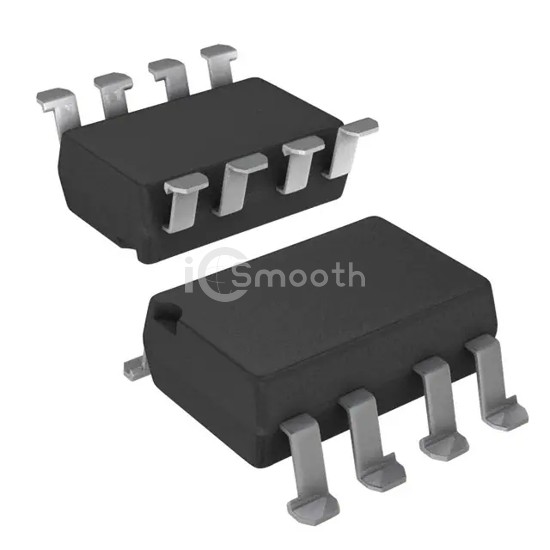

ILD755-2X007T - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output
REF: ILD755-2X007T Vishay Semiconductor Opto Division
ILD755-2X007T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 2CH DARL 8SMD

ILD755-2X007T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 2CH DARL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 717

Specifications

18 parameters
Product StatusActive
Number of Channels2
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)70µs, 70µs
Input TypeAC, DC
Output TypeDarlington
Voltage - Output (Max)60V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
