ILD615-3X009T

In Stock: 5,701

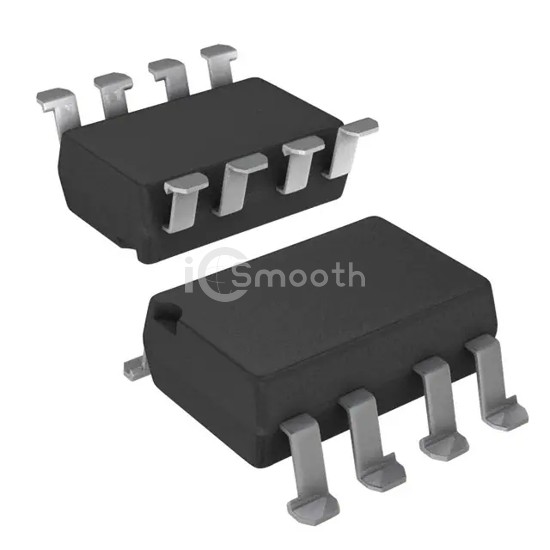

ILD615-3X009T - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output
REF: ILD615-3X009T Vishay Semiconductor Opto Division
ILD615-3X009T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV 2CH TRANS 8SMD

ILD615-3X009T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV 2CH TRANS 8SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,701

Tiered Pricing USD
1+ $1.8400 —
10+ $1.3140 -29%
100+ $0.9984 -46%
500+ $0.8590 -53% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels2
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)200% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 2.3µs
Rise / Fall Time (Typ)2µs, 2µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
