Name: IL755-2
Brand: Vishay Semiconductor Opto Division
SKU: IL755-2
Price: 0.83 USD
Availability: InStock

REF: IL755-2 Vishay Semiconductor Opto Division

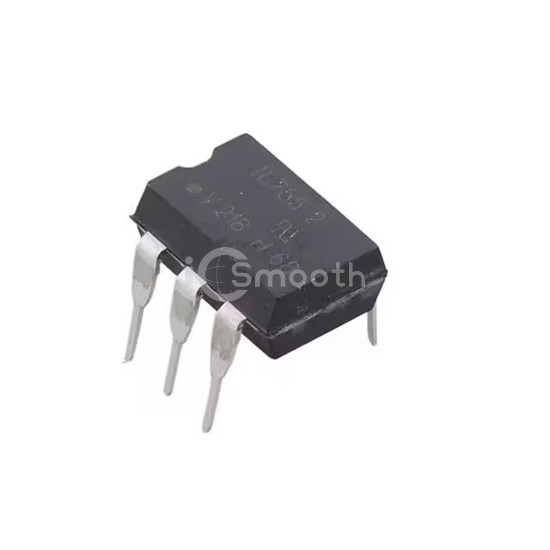

IL755-2

Vishay Semiconductor Opto Division

OPTOISO 5.3KV DARL W/BASE 6DIP

IL755-2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV DARL W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,000

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	70µs, 70µs
Input Type	AC, DC
Output Type	Darlington with Base

Voltage - Output (Max)	60V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	1V
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
