Name: IL5
Brand: Vishay Semiconductor Opto Division
SKU: IL5
Price: 0.21 USD
Availability: InStock

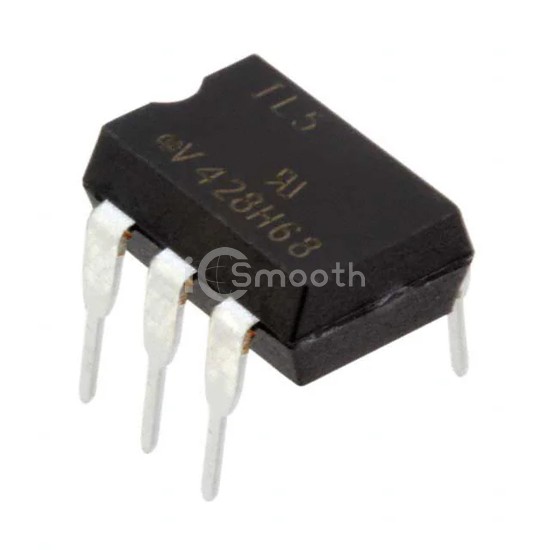

IL5 - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output

REF: IL5 Vishay Semiconductor Opto Division

IL5

OPTOISO 5.3KV TRANS W/BASE 6DIP

IL5 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 6-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 3,002

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	50% @ 10mA
Current Transfer Ratio (Max)	400% @ 10mA
Turn On / Turn Off Time (Typ)	2.6µs, 7.2µs
Rise / Fall Time (Typ)	7µs, 20µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	250mV (Typ)
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
