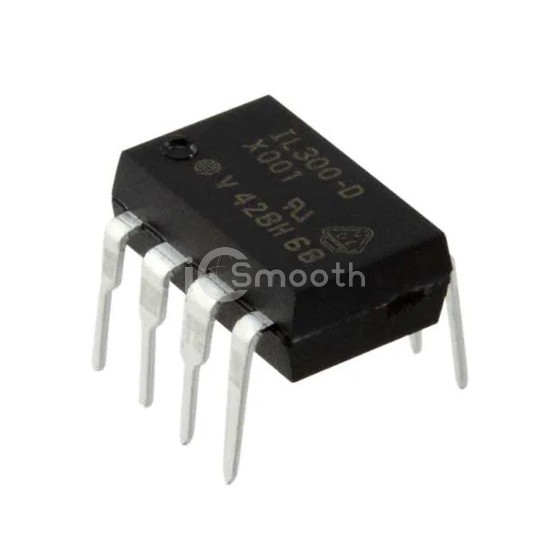

Name: IL300-DEFG-X001
Brand: Vishay Semiconductor Opto Division
SKU: IL300-DEFG-X001
Price: 3.75 USD
Availability: InStock

REF: IL300-DEFG-X001 Vishay Semiconductor Opto Division

IL300-DEFG-X001

Vishay Semiconductor Opto Division

OPTOISO 5.3KV PHVOLT 8DIP

IL300-DEFG-X001 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV PHVOLT 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.25V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,407

Tiered Pricing USD

1+ $3.7500 —

50+ $2.3132 -38%

100+ $2.1678 -42%

500+ $1.9094 -49%

1,000+ $1.8254 -51%

2,000+ $1.7542 -53%

5,000+ $1.6767 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	1µs, 1µs
Input Type	DC
Output Type	Photovoltaic, Linearized

Voltage - Output (Max)	500mV
Current - Output / Channel	70µA (Typ)
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
