Name: H11D2
Brand: Vishay Semiconductor Opto Division
SKU: H11D2
Price: 1.72 USD
Availability: InStock

REF: H11D2 Vishay Semiconductor Opto Division

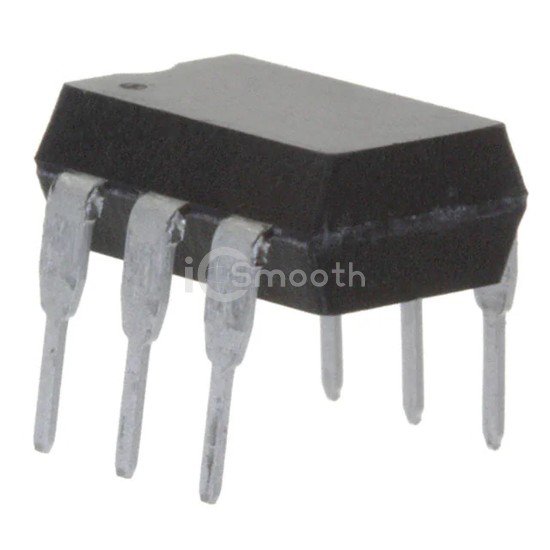

H11D2

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6DIP

H11D2 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,435

Tiered Pricing USD

1+ $1.7200 —

50+ $1.0026 -42%

100+ $0.9289 -46%

500+ $0.7973 -54%

1,000+ $0.7544 -56%

2,000+ $0.7180 -58%

5,000+ $0.6783 -61%

10,000+ $0.6536 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 6µs
Rise / Fall Time (Typ)	2.5µs, 5.5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	300V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
