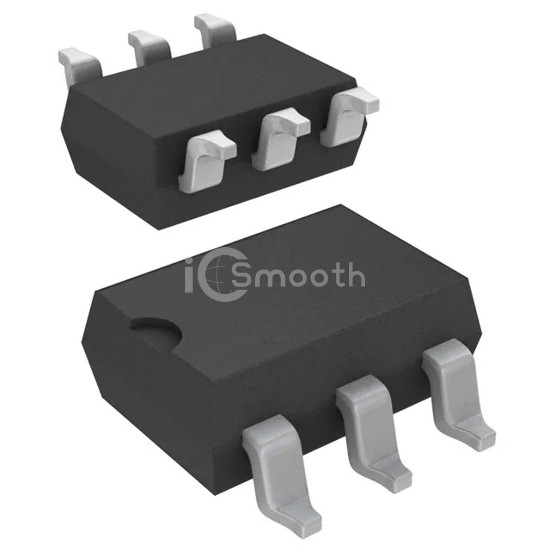

Name: H11D1-X017T
Brand: Vishay Semiconductor Opto Division
SKU: H11D1-X017T
Price: 0.84 USD
Availability: InStock

REF: H11D1-X017T Vishay Semiconductor Opto Division

H11D1-X017T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6SMD

H11D1-X017T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,242

Tiered Pricing USD

1,000+ $0.8429 —

2,000+ $0.8033 -5%

3,000+ $0.7830 -7%

5,000+ $0.7601 -10%

7,000+ $0.7464 -11%

10,000+ $0.7332 -13% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 6µs
Rise / Fall Time (Typ)	2.5µs, 5.5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	300V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
