H11D1-X009T

In Stock: 579
H11D1-X009T - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output
REF: H11D1-X009T Vishay Semiconductor Opto Division

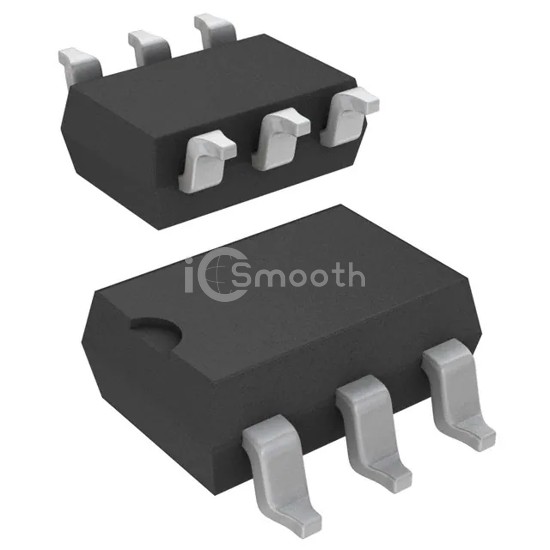

H11D1-X009T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6SMD

H11D1-X009T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 579

Tiered Pricing USD
1+ $1.8400 —
10+ $1.3140 -29%
100+ $0.9984 -46%
500+ $0.8590 -53% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 6µs
Rise / Fall Time (Typ)2.5µs, 5.5µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)300V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
