Name: H11D1-X009
Brand: Vishay Semiconductor Opto Division
SKU: H11D1-X009
Price: 1.78 USD
Availability: InStock

REF: H11D1-X009 Vishay Semiconductor Opto Division

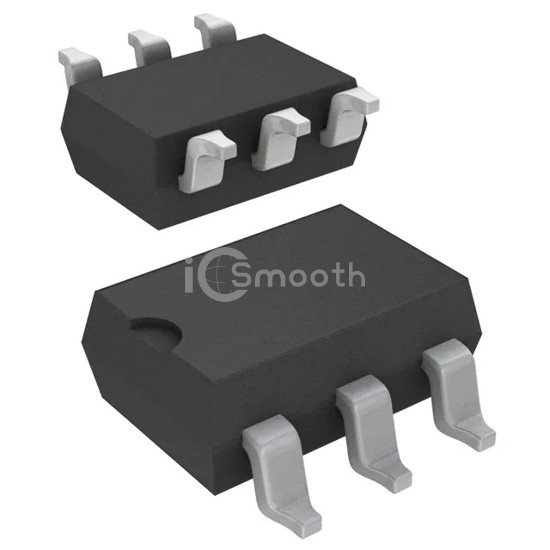

H11D1-X009

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6SMD

H11D1-X009 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,436

Tiered Pricing USD

1+ $1.7800 —

10+ $1.2700 -29%

100+ $0.9637 -46%

500+ $0.8282 -53%

1,000+ $0.7840 -56%

2,000+ $0.7465 -58%

6,000+ $0.6985 -61%

10,000+ $0.6802 -62% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 6µs
Rise / Fall Time (Typ)	2.5µs, 5.5µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	300V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
