Name: H11AA1-X001
Brand: Vishay Semiconductor Opto Division
SKU: H11AA1-X001
Price: 1.38 USD
Availability: InStock

REF: H11AA1-X001 Vishay Semiconductor Opto Division

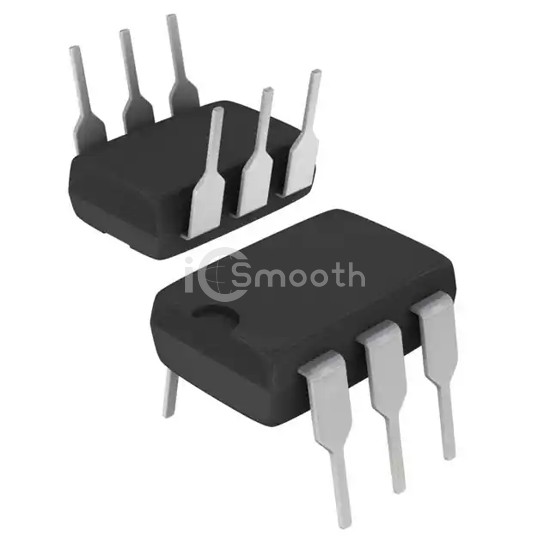

H11AA1-X001

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 6DIP

H11AA1-X001 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,107

Tiered Pricing USD

1+ $1.3800 —

50+ $0.7890 -43%

100+ $0.7285 -47%

500+ $0.6206 -55%

1,000+ $0.5853 -58%

2,000+ $0.5553 -60%

5,000+ $0.5227 -62%

10,000+ $0.5024 -64% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	AC, DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
