Name: CNY65
Brand: Vishay Semiconductor Opto Division
SKU: CNY65
Price: 2.35 USD
Availability: InStock

REF: CNY65 Vishay Semiconductor Opto Division

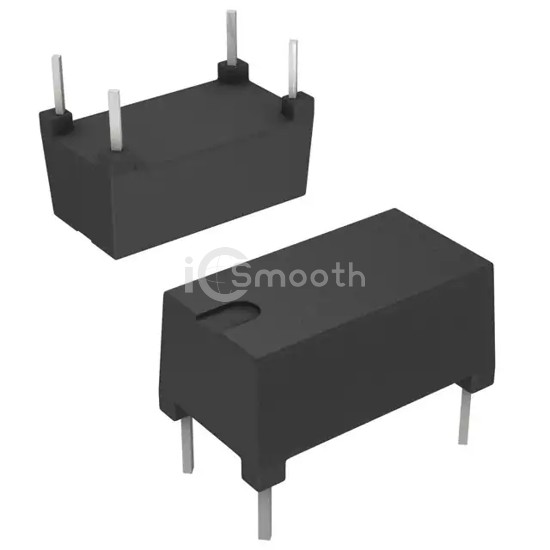

CNY65

Vishay Semiconductor Opto Division

OPTOISOLATOR 13.9KV TRANS 4-DIP

CNY65 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 13.9KV TRANS 4-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - forward (vf) (typ) 1.25V, package / case 4-EDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,325

Tiered Pricing USD

1+ $2.3500 —

30+ $1.4783 -37%

120+ $1.2767 -46%

510+ $1.1256 -52%

1,020+ $1.0697 -54%

2,010+ $1.0233 -56%

5,010+ $0.9717 -59%

10,020+ $0.9394 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	13900VDC
Current Transfer Ratio (Min)	50% @ 10mA
Current Transfer Ratio (Max)	300% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 3µs
Rise / Fall Time (Typ)	2.4µs, 2.7µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	75 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 85°C
Mounting Type	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
